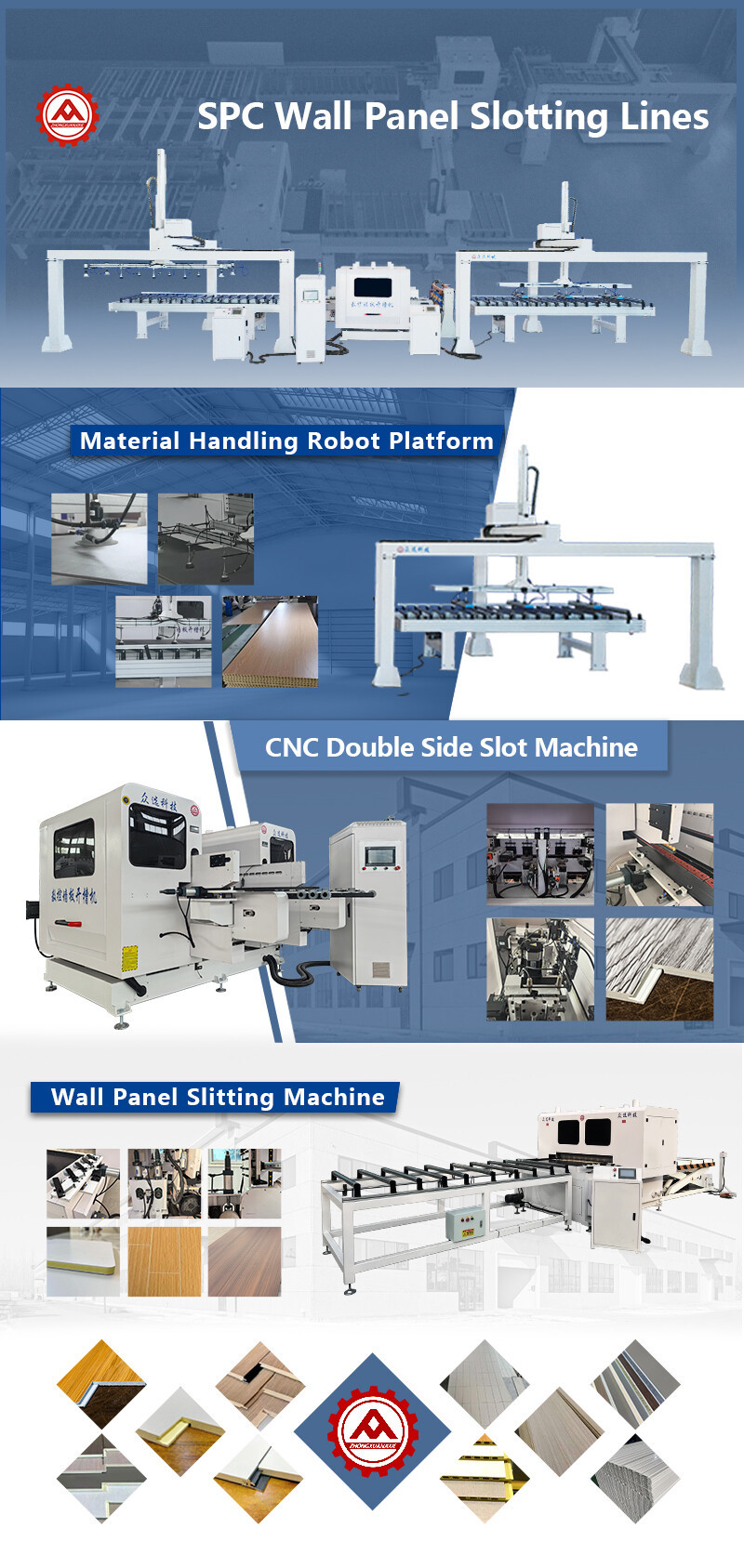

Equipment Application: An automated slitting and slotting machine designed specifically for SPC (Stone Plastic Composite) wall panels and various other board materials.

 I. Working Process：The production line operates fully automatically with minimal manual intervention,

following these steps: 1. Robot Automatic Loading: The robotic arm accurately grabs the boards and conveys them to the power conveyor table.

2. CNC Custom-width Slitting: The large boards enter the slitting machine, where the slitting width can be freely set via the CNC system according to production requirements.

3. Automatic Board Turning: The slit boards are flipped automatically by the board turning machine to meet the needs of double-sided processing.

4. Precision Grooving: The boards are transferred to the slotting machine via the roller conveyor table, and the finished products are output after the grooving process is completed.

II. Core Equipment Features

1. High Automation Level: Integrates a full range of functions including automatic loading, CNC slitting, automatic board turning, and precision grooving, significantly reducing manual operations, labor costs, and human errors.

2. High-precision CNC Control: Adopts advanced CNC technology to precisely regulate the feeding speed and position of the cutting tools, ensuring consistent grooving dimensions, stable precision, and improved product standardization.

III. Processing Capability

1. Wide Range of Applicable Boards: In addition to SPC wall panels, it is also compatible with the processing of bamboo charcoal boards, bamboo-wood boards, magnesium oxide boards, calcium silicate boards and other board materials, meeting the production needs of multiple product categories.

2. Diversified Groove Types: Capable of processing various groove types such as male-female grooves, lock grooves, and double female grooves, satisfying the splicing and installation requirements of different boards.

3. Key Processing Parameters - Processing Size: **40-1220mm** - Processing Speed: **0-30m/min** - Processing Efficiency: Capable of grooving **4-6 pieces of 1200*2400mm standard boards per minute**

IV. Core Performance Advantages

1.Progressive Cutting to Prevent Edge Chipping: Adopts a progressive cutting process with multi-stage tool combinations. It first performs shallow surface pre-milling, then gradually deepens the grooving depth, effectively avoiding edge chipping of the boards and ensuring the appearance quality of the finished products.

2.Real-time Online Quality Inspection: Equipped with an online quality inspection system that monitors grooving dimensional accuracy and board surface flatness in real time, and issues timely alerts for abnormalities.

3. Ultra-high Product Qualification Rate: Relying on precision processing and real-time detection technology, the product qualification rate is stably maintained at **over 99%**, effectively reducing production rework rates.
