Main Application: Specialized in the grooving process of PVC wall panels, it performs precision and high-speed machining of longitudinal grooves on panels. The panels feature zero edge chipping and one-pass forming. It is equipped with CNC tool adjustment and enables one-click switching between various groove profiles.

Processing Parameters

Processing Width: 40–1220 mm

Processing Speed: 0–30 m/min

Efficiency: 4–6 pieces of standard-sized panels (1200×2400 mm) can be grooved per minute

Loading & Unloading ConfigurationsThis machine can be paired with robotized loading/unloading systems or manual roller conveyor systems for front and rear material handling:

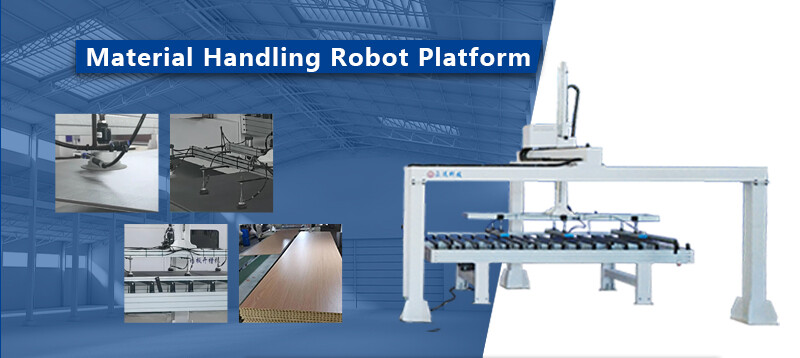

Robotized Loading & Unloading Equipped with heavy-duty or light-duty industrial robots, it realizes full-process automation covering loading, grooving, unloading and palletizing. This significantly reduces labor and time costs.

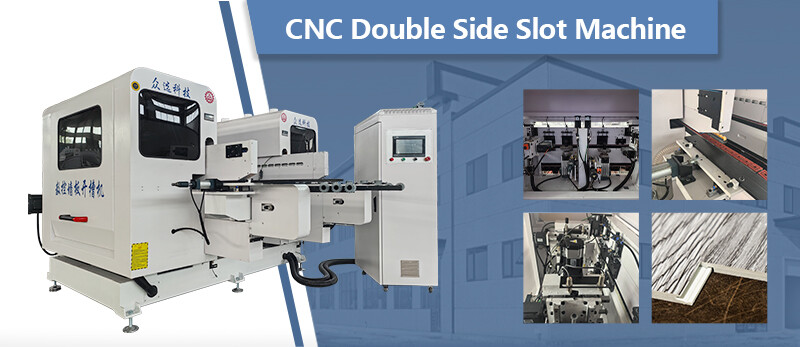

Manual Roller Conveyor Loading & Unloading Compared with single-end grooving machines, this double-end grooving machine with manual roller conveyors can process grooves on both ends of panels simultaneously. It boosts production efficiency, shortens processing time, lowers equipment costs, and meets the requirements of batch production to a certain extent.
